DIY Fab Table Plans
$25.00
Looking to build a Fab Table for your garage or shop?
These plans are all you need, minus some steel of course!
Table utilizes all .25"(1/4") Steel.

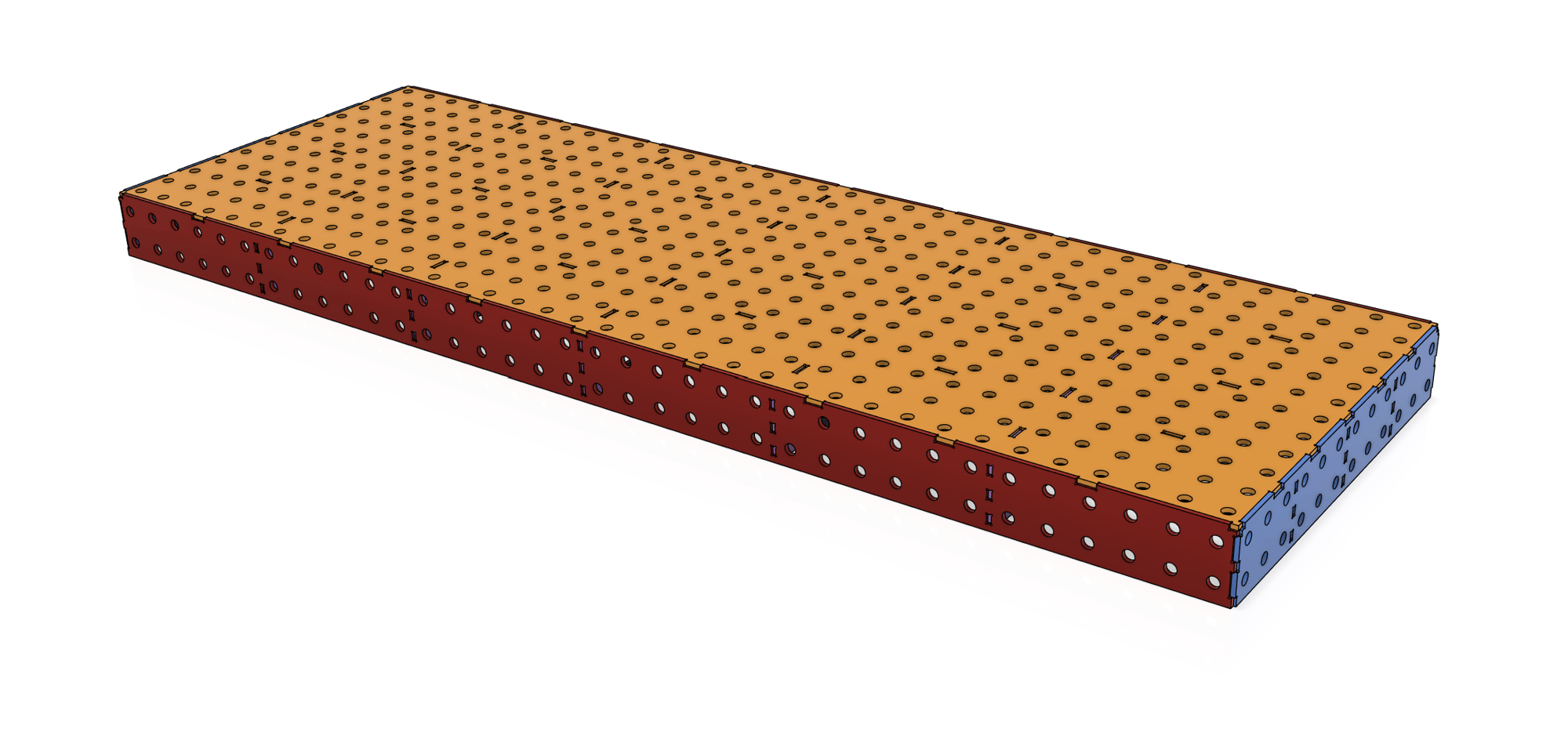

Table measures 72”x24”x4”
16mm holes, 2”x2” on center

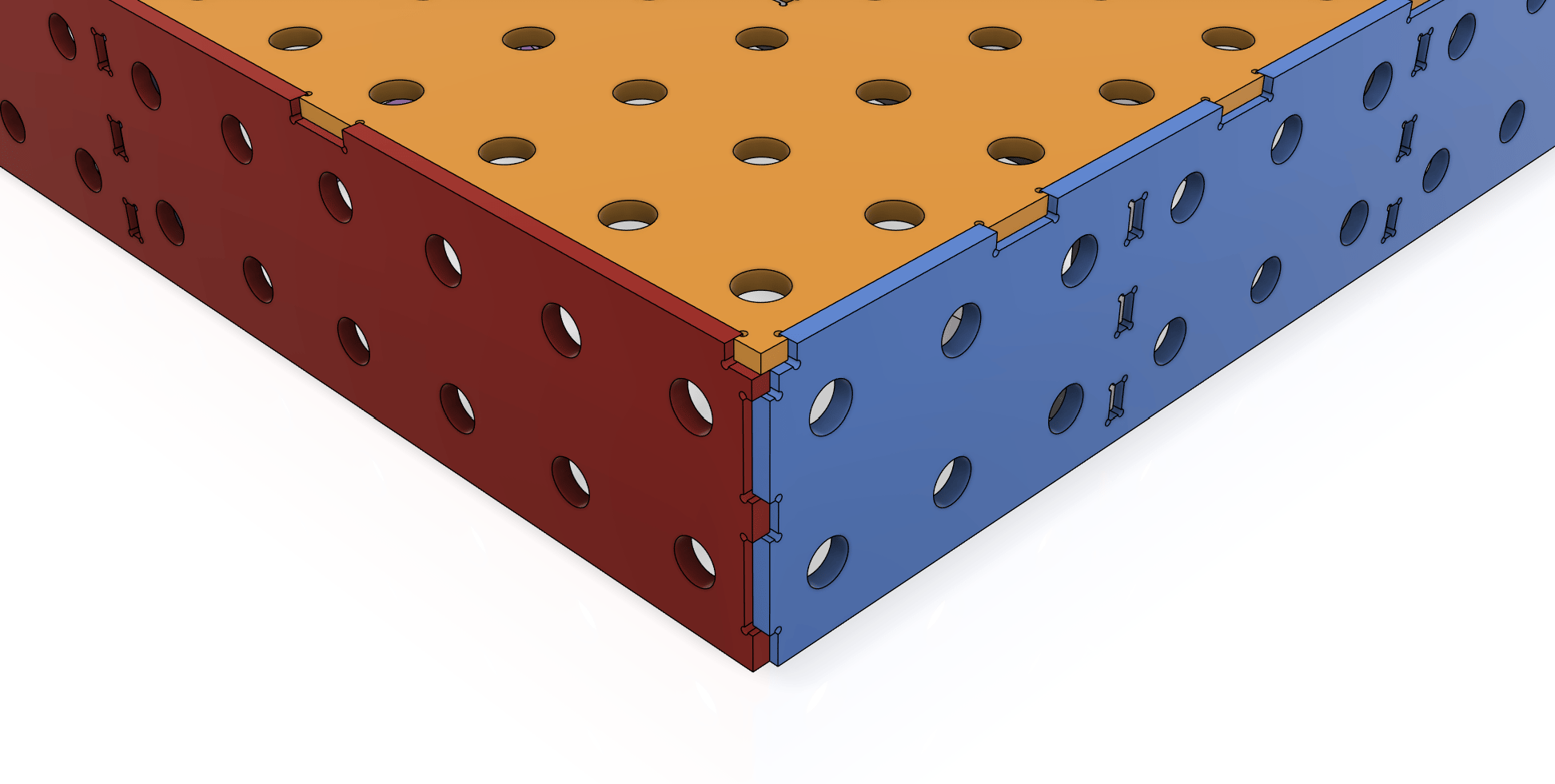

Each part features tab and slot locating, meaning this table simply clicks together. Tab & Slot areas are recessed .125"(1/8") to provide ample room for weld filling.

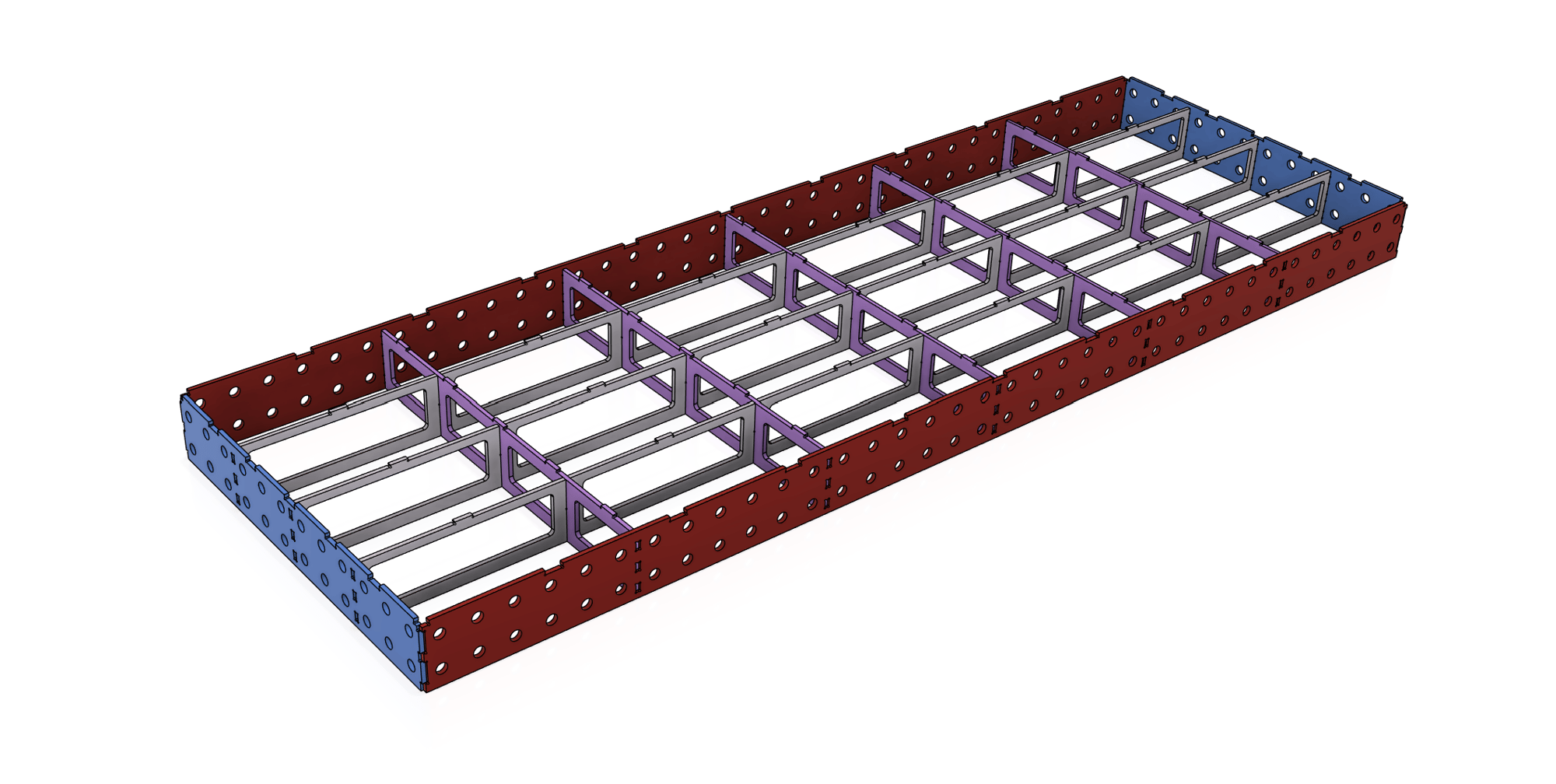

Table has 5 Lateral Braces & 3 Longitudinal Braces. these braces slip into one another.
***FILE CONTAINS .DXF FILES, DRAWINGS AND REFERENCE PHOTOS***
